Tesniaci krúžok
Sortiment / Assortment » Tesniaci krúžok
« späť| Číslo normy | Názov položky | Obrázok |
|---|---|---|
|
DIN 7603
ISO
ČSN / STN
EN
|
[SK] Tesniaci krúžok
[EN] Sealing washer
[DE] Dichtring
[FR]
[IT]
|
|
| « späť |

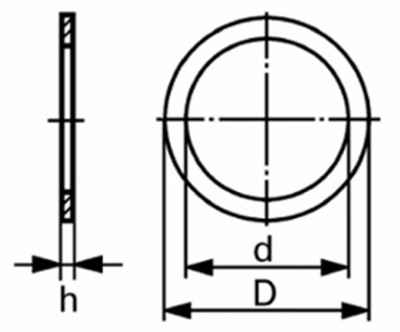

| d | M 4 | M 5 | M 6 | M 6 | M 6.5 | M 8 | M 8 | M 8 | M 8 |
|---|---|---|---|---|---|---|---|---|---|
| d1 | 8 | 9 | 10 | 12 | 9.5 | 11 | 11.5 | 12 | 14 |
| h | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| d | M 8 | M 8 | M 8 | M 10 | M 10 | M 10 | M 10 | M 10 | M 12 |
| d1 | 14 | 15 | 22 | 13 | 14 | 14 | 16 | 16 | 16 |
| h | 1.5 | 1.5 | 1.5 | 1 | 1 | 1.5 | 1 | 1.5 | 1 |
| d | M 12 | M 12 | M 12 | M 14 | M 14 | M 14 | M 14 | M 16 | M 16 |
| d1 | 16 | 18 | 24 | 18 | 20 | 22 | 22 | 20 | 22 |
| h | 1.5 | 1.5 | 2 | 1.5 | 1.5 | 1.5 | 2 | 1.5 | 1.5 |
| d | M 17 | M 18 | M 18 | M 19 | M 20 | M 20 | M 22 | M 22 | M 23 |
| d1 | 21 | 22 | 24 | 26 | 24 | 26 | 27 | 29 | 28 |
| h | 1.5 | 1.5 | 1.5 | 2 | 1.5 | 1.5 | 1.5 | 1.5 | 2 |
| d | M 24 | M 24 | M 25 | M 27 | M 27 | M 28 | M 30 | M 30 | M 48 |
| d1 | 29 | 32 | 35 | 32 | 35 | 34 | 36 | 36 | 55 |
| h | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2.5 | 2 |
